Acid-Copper Electroplating Module
Model 1000 Manual - Overview I

Overview

Your Think & Tinker GC18-1000 Acid Copper electroplating system has been thoroughly tested at the factory. Although the unit arrived at your facility completely assembled, there are a few things that you need to do to get it ready to use. There are a number of possible configurations for the cart based systems so some of the sections below may not apply to your unit.

Plating Cart Components

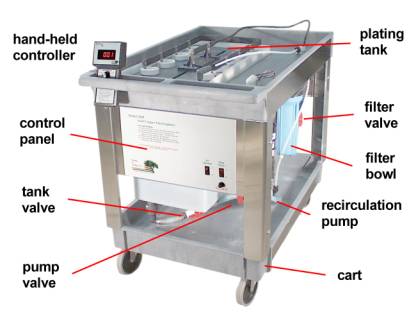

Acid Copper Electroplating Cart
Figure 1

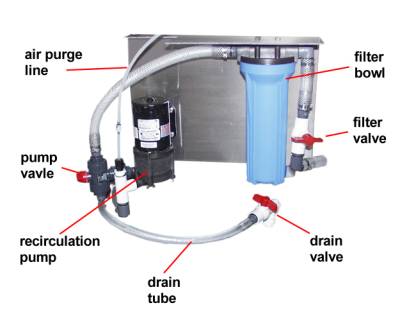

Recirculation / filtration module
Figure 2
