Resist Image Characteristics

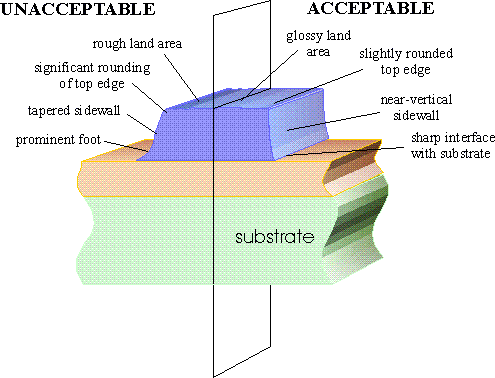

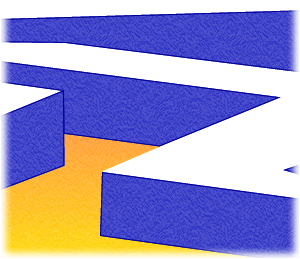

All trace walls should be nearly vertical and should meet the surface of the copperclad in sharp, well defined intersections. The photopolymer surface should be smooth and glossy (after drying) and should meet the trace walls in sharp (or very slightly rounded) edges.
