Photopolymer Dry-film Developing Module
Operation/Resist Image Characteristics

Resist Image Characteristics
All trace walls should be nearly vertical and should meet the surface of the copperclad in sharp, well defined intersections. The photopolymer surface should be smooth and glossy (after drying) and should meet the trace sidewalls in sharp (or very slightly rounded) edges.

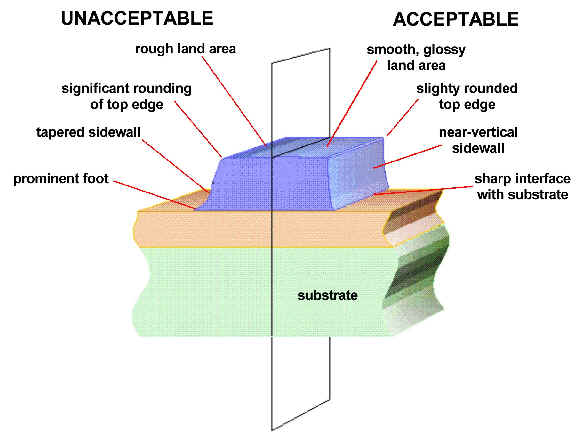

Resist image characteristics
Fig. 6
