Assembling an air sparging manifold

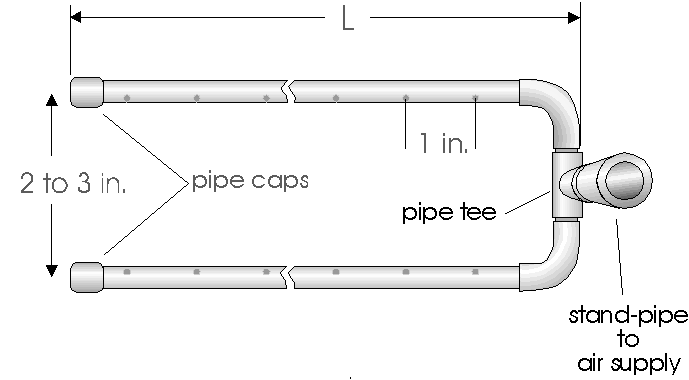

Once the actual bubbler sections have been drilled, they are ready for assembly into a complete sparging manifold. The design shown below will insure that the depletion regions that forms on both sides of your board are thoroughly disturbed. The holes along each pipe are actually on the bottom side of the sparger. They are shown for reference only.
