Digital Control Panel
ModuLam 130
Tel.: (719) 488-9640
Fax: (719) 481-0464

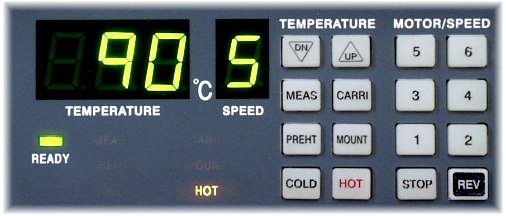

Modulam digital control panel
The control panel gives the user direct access to the basic laminating parameters. Four preset combinations of temperature and drive speed accommodate the vast majority of laminating films and adhesives.

Lamination roller temperature can also be set manually using the up and down arrows. Five pre-set speeds are set using the numeric keys.  This feature is especially handy when testing new materials or developing a new manufacturing process.

Microprocessor based control circuitry insures that you can input the desired values and return to the same operating points every time.  Keeping accurate records of the temperature, pressure and speed for the various types of lamination that you do will allow you to virtually eliminate trial and error when setting up the machine.

close this window to return to ModuLam specs.
