Modular Lamination Engine
Hot-roll, sheet-fed lamination
ModuLam 130 imagemap
(click on hotspots in the
image for more information)

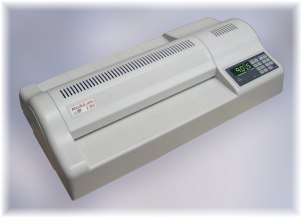

The ModuLam 130 is the most robust compact dry-film laminator on the market today. It is the first low-cost lamination engine to incorporate internally heated rollers and custom microprocessor based digital speed and temperature controls. The optional footswitch and lamination carrier provide a degree of control previously found only on more expensive, roll fed machines.

The Modulam 130 is the basis of a modular lamination system that brings hassle-free sheet-fed lamination to small shops and hobbyists.

For a complete list of lamination equipment and supplies, see our On-line Catalog
Specifications / Features
Mechanical
Height 5.51" (140mm)
Width 22.85" (580mm)
Depth 11.62" (295mm)
Net weight 31 lb. (14.1 kg)
Shipping weight 36.75 lb. (16.7 kg)
Electrical
Power requirements 115/220 VAC @ 50/60 Hz
800 Watts
Operational
Max. laminating width 13" (330mm)
Max. laminating thickness 0.125" (3.18 mm)
Max. lamination speed 41"/min (105 cm/min.)
Speed Setting: 1
2
3
4
5
6
30 cm/min
38 cm/min
46 cm/min
58 cm/min
73 cm/min
105 cm/miin
Max. operating temperature 135°C (284°F)
Warm-up time approx. 3 min.
Heavy duty gear drive train yes
Top grade silicone rubber lamination rollers yes
Coupled top and bottom temperature control thermocouple / digital
Motor drive / speed control pulsed DC motor / digital
