DKS Innovations
Reflection Optics
UV1218

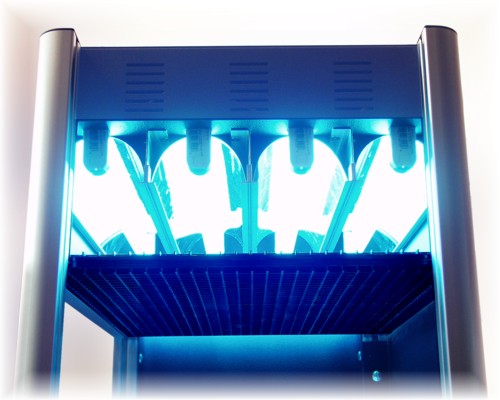

DKS UV1218 reflection optics


The heart of the DKS UV1218 consists of a bank of high-efficiency parabolic reflectors and a 17° (relative to normal) collimation grid. The reflector bank captures light emitted from the back surface of the tubes (energy that would otherwise be lost) and redirects it through the collimation grid. The grid extinguishes virtually all "high-angle" (>17°) light that would smear out fine details in printed citcuit, rubber stamp, and lithographic artwork (other fluorescent-light based systems pass light at angles up to 85°). Working together these simple optical elements multiply the efficiency and fidelity of the UV1218 imaging system.
